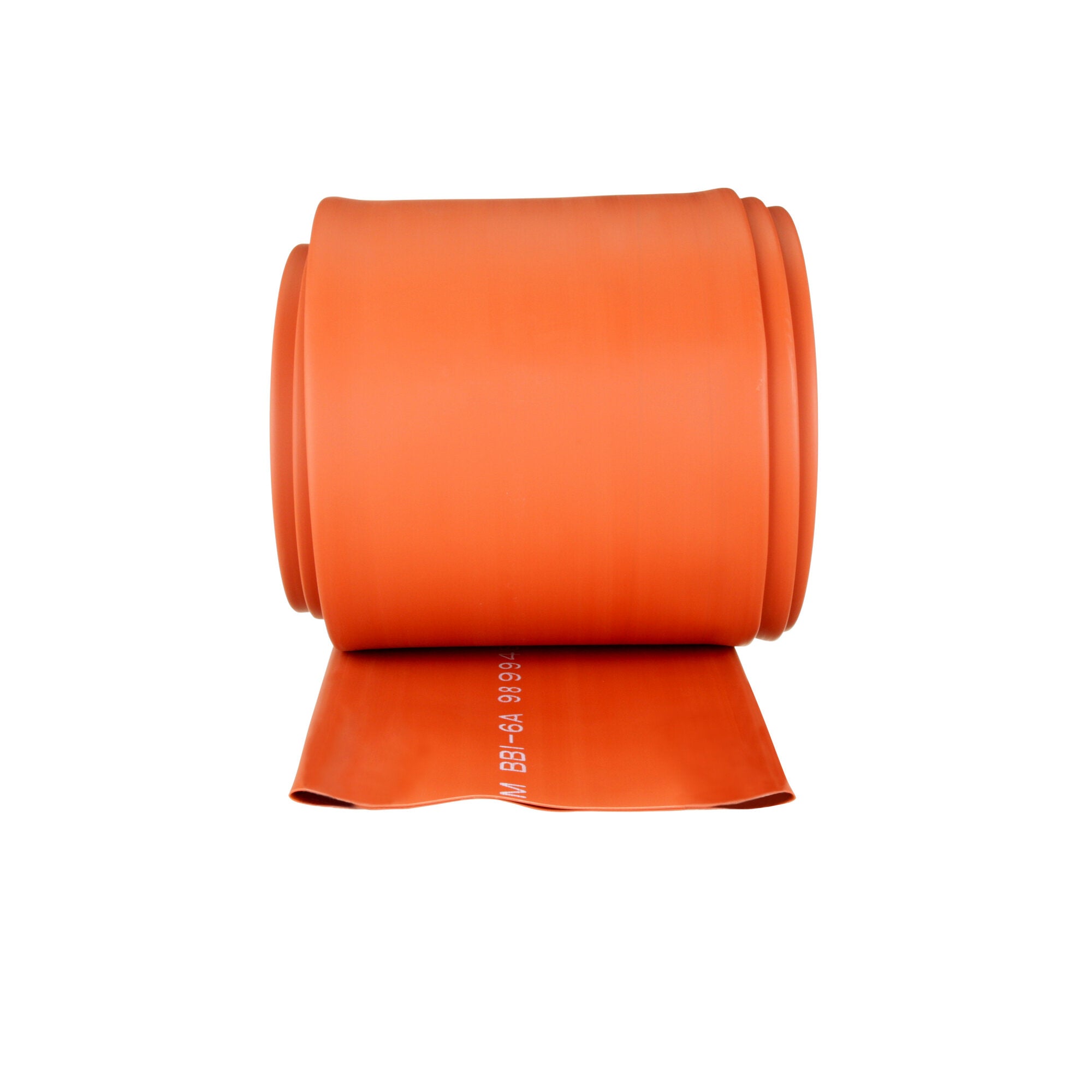

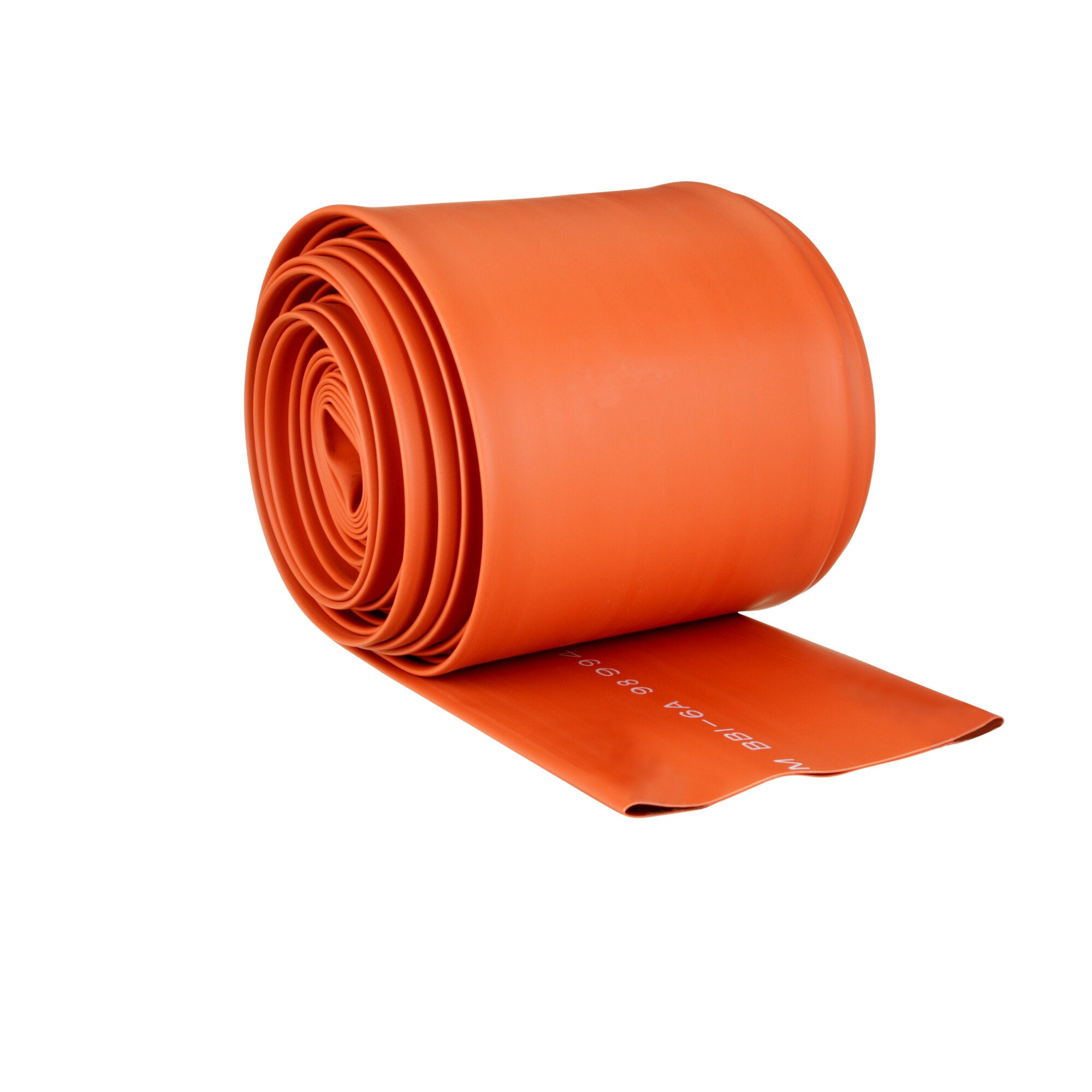

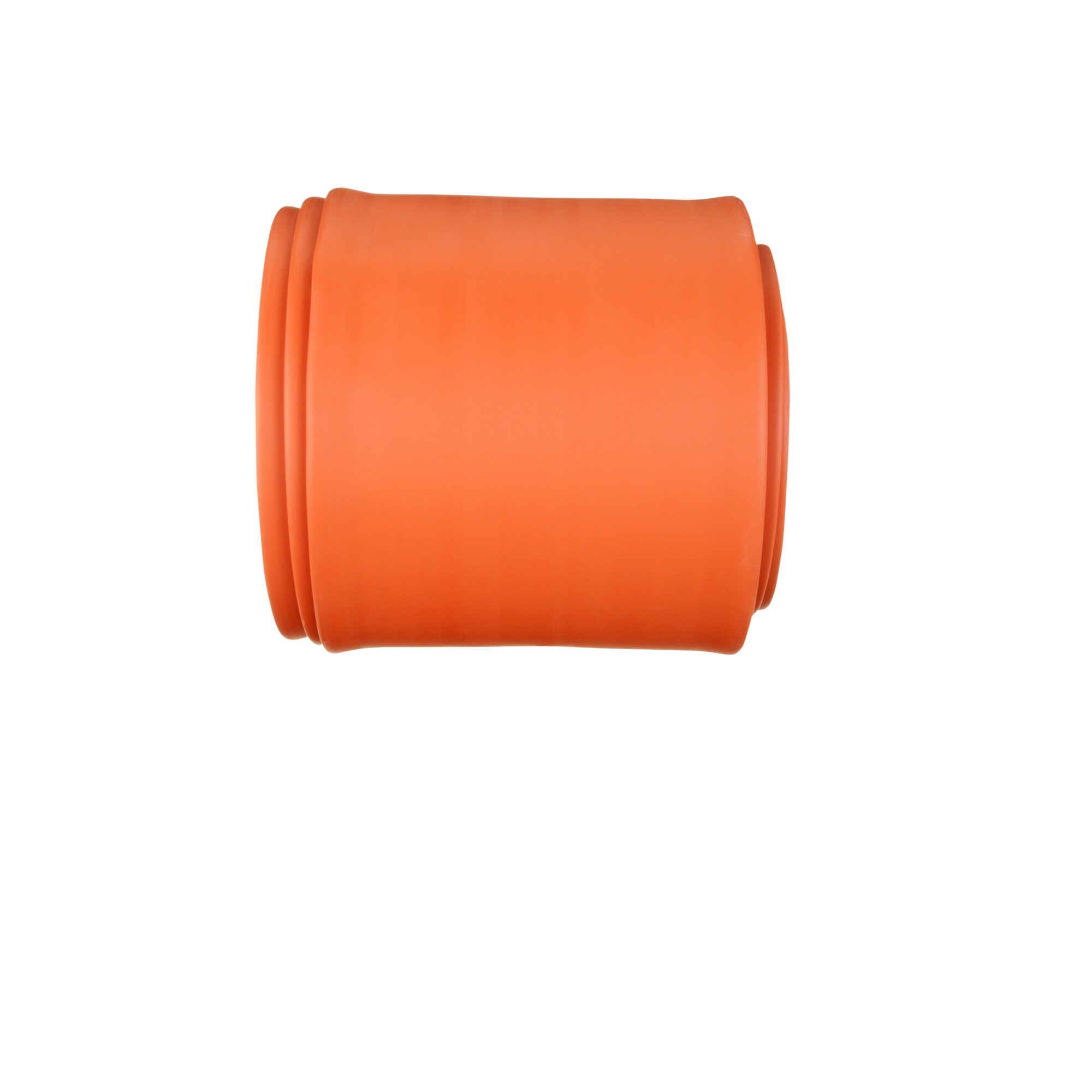

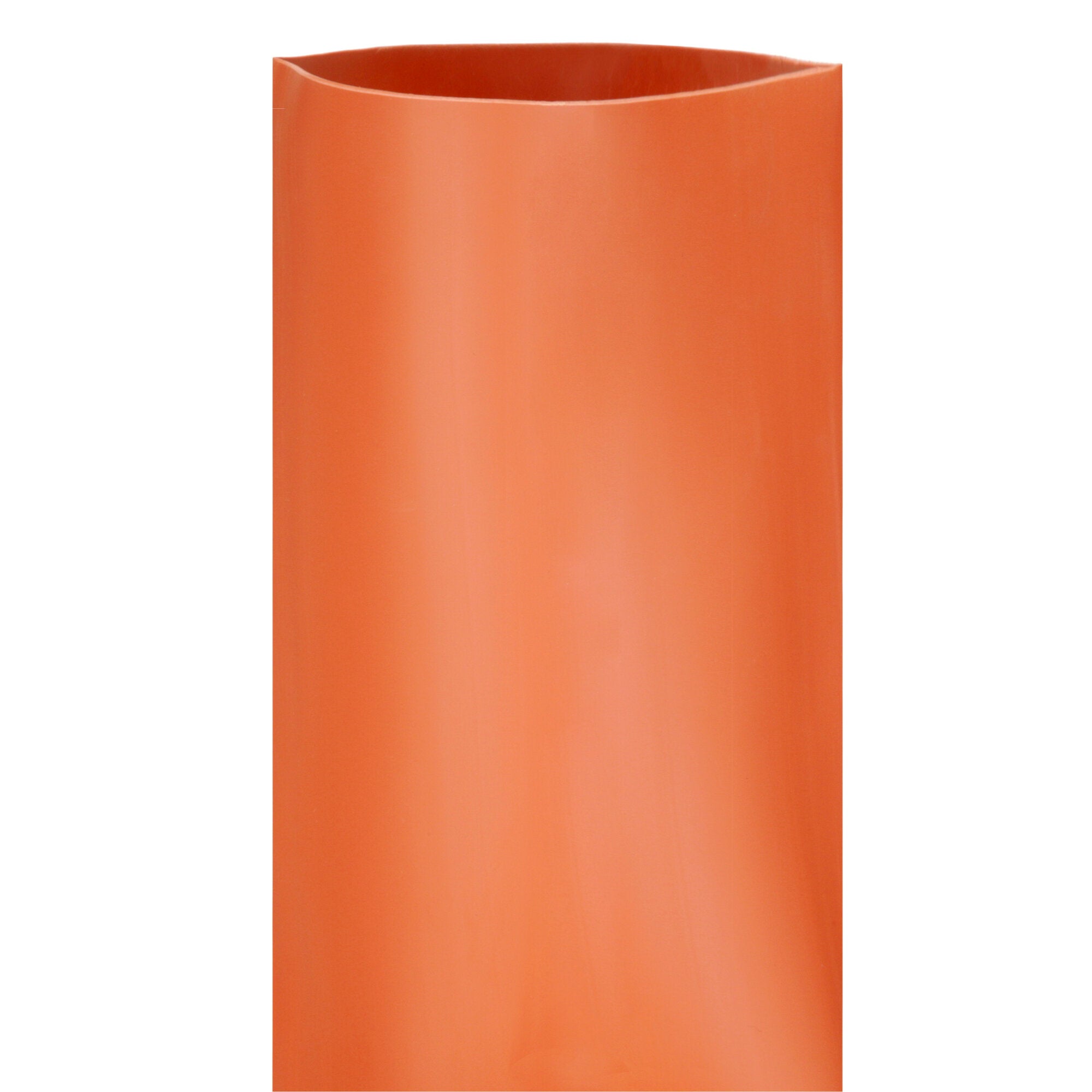

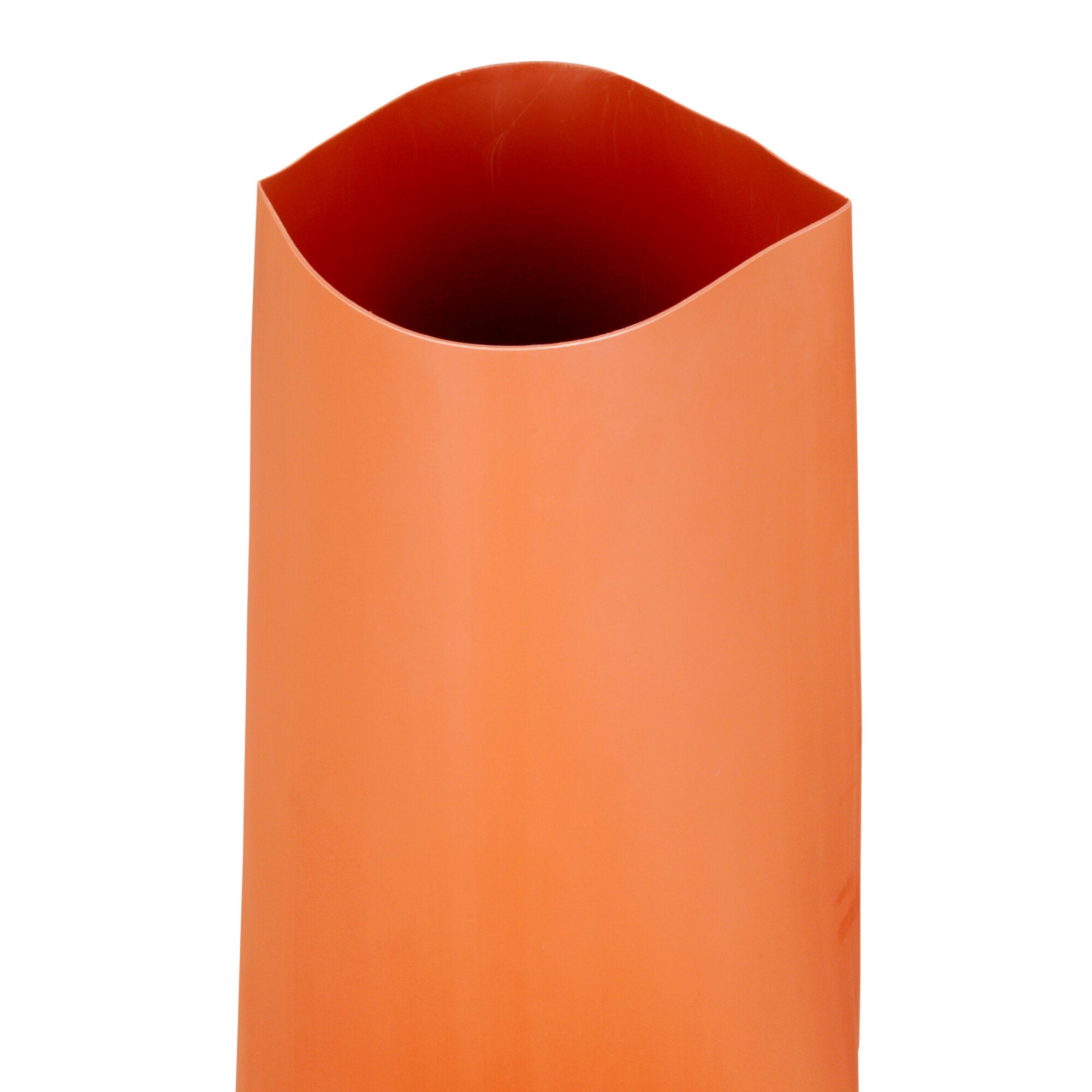

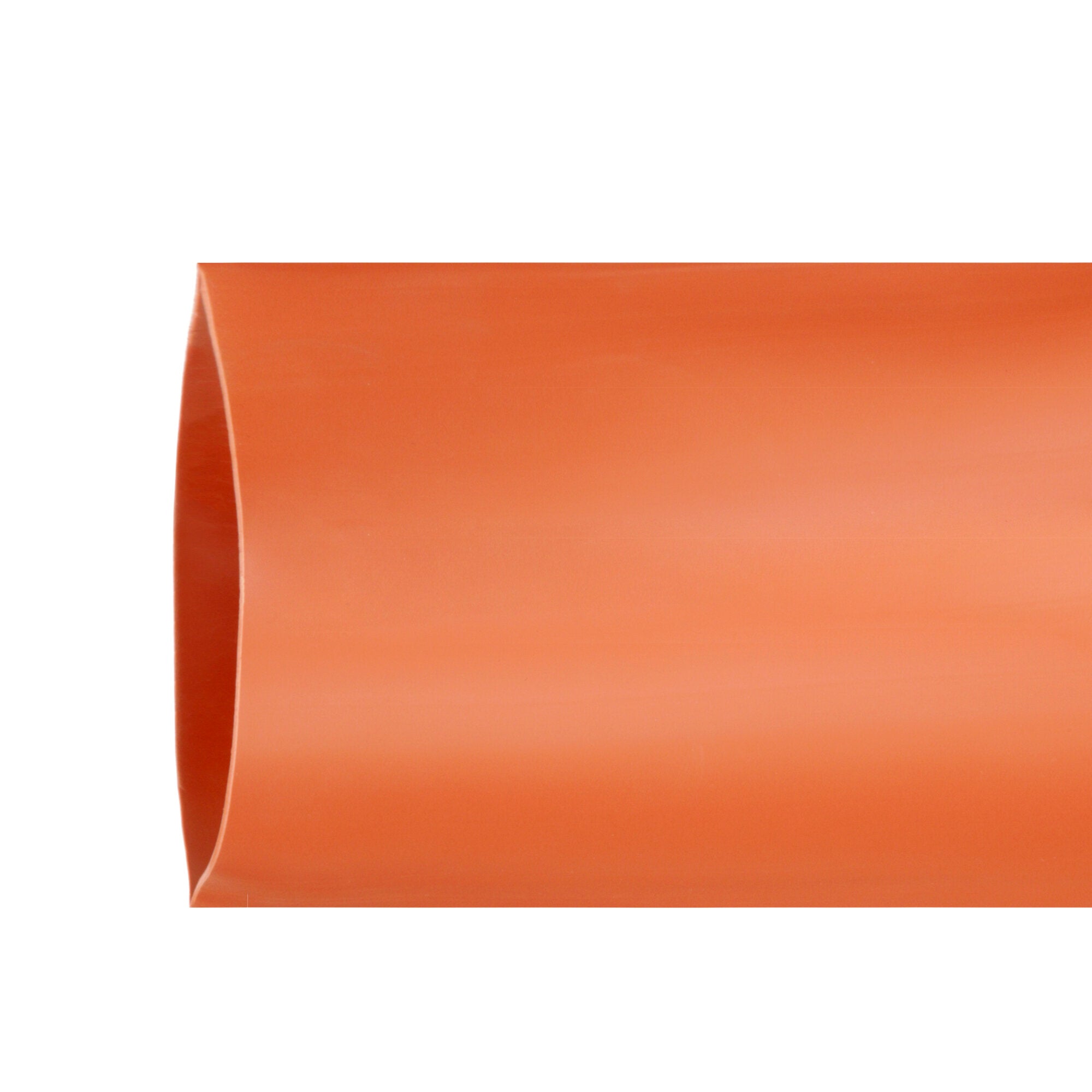

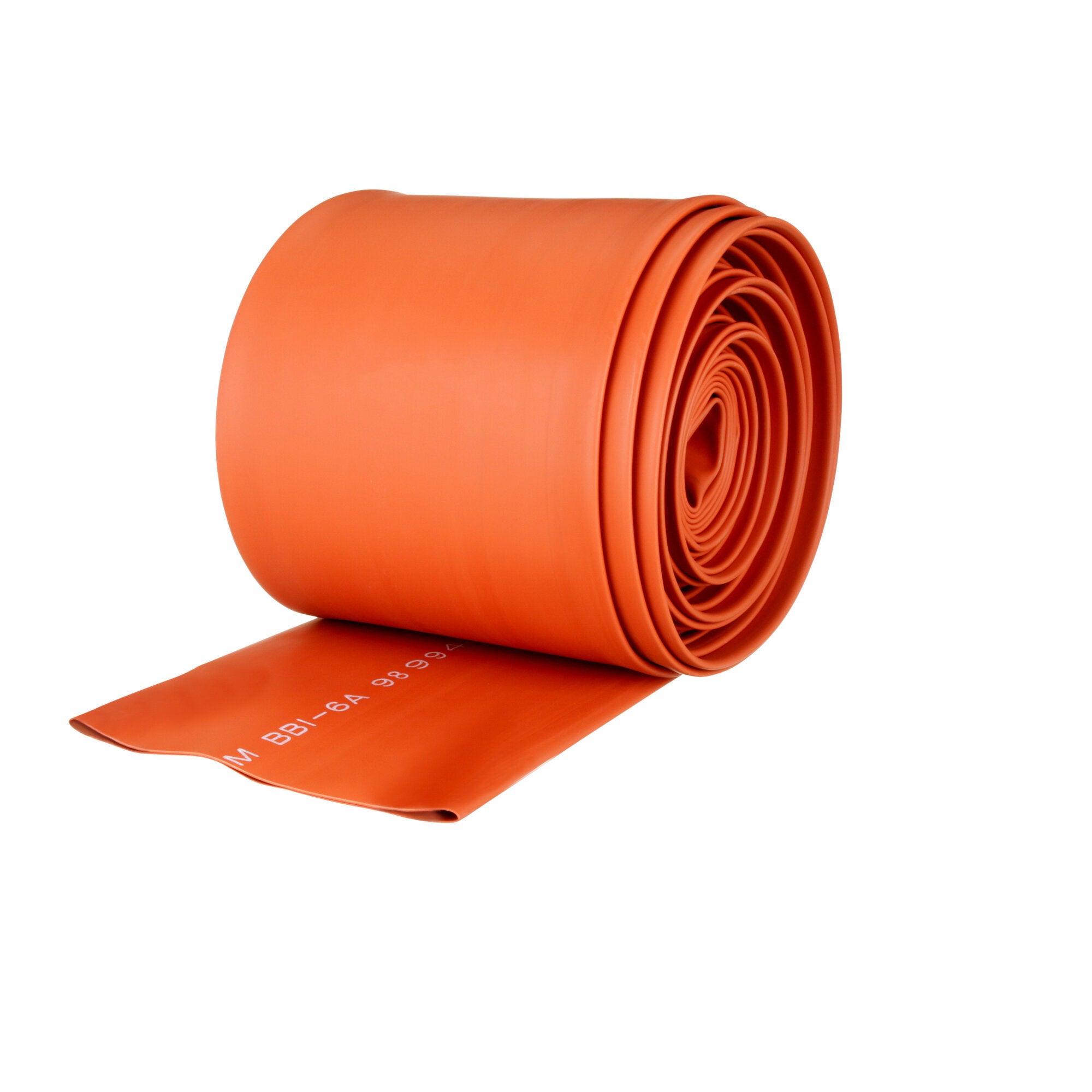

3M BBI 6A Bus Bar Heat Shrink Tubing - 20ft Length, 7.57-12.86in Outer Diameter - Electrical Insulation for Automotive, Marine & Industrial Wiring Protection
$441.62 $802.95
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:61753617
Guranteed safe checkout
Product Description
General Information
Brand
3M™
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Product Type
Bus Bar Tubing
Splice Type
Heat Shrink
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Wall Thickness
0.046 in
Inner Diameter After Shrink (Imperial)
7.571 in
Inner Diameter After Shrink (Metric)
192.3 mm
Inner Diameter Before Shrink (Imperial)
12.858 in
Inner Diameter Before Shrink (Metric)
326.6 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Outside Diameter (Bar Circumference)
7.57 - 12.86 inch
Overall Length (Imperial)
20 ft
Overall Length (Metric)
6.1 m
Recovered Wall Thickness
0.117 in
Rectangular Size
(3-1/2 x 1/2) to (6 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
Relaxed Tube Length (Metric)
6.1 m
Round Size (Diameter)
See Sizing Chart on Data Sheet
Square Size
(2-1/2 x 2-1/2) to (3 x 3) Inch (for 5 kV, 8 kV, 15 kV)
Voltage
5 kV
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
20.0
Width
9.49 in
24.1 cm
24.1 cm
Height
10.91 in
27.7 cm
27.7 cm
Length
9.49 in
24.1 cm
24.1 cm
Volume
981.78 cubic inch
16088.44 cm3
16088.44 cm3
Weight
10.24 lb
4.64 kg
4.64 kg
Other Details
Flame Retardant
Yes
Halogen Free
No
Maximum Recovered Tubing I. D.
2.33 in
Minimum Expanded Tubing I. D.
5.9 in
Shrink Ratio
1.5 : 1
Solution
constructionbus
Units Per Case
1.0
With Inner Glue
No
Material and Composition
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Orange
Shape
Square
Certifications and Standards
UL Approval
No
